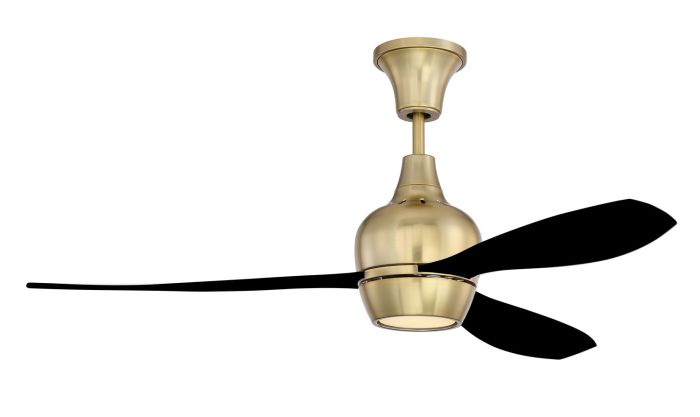

Bordeaux Indoor Ceiling Fan - BRD52xxx3
Bordeaux Ceiling Fan (Blades Included)
The eye-catching Bordeaux 52" indoor ceiling fan with three custom blades and 4-speed wall control included features a dimmable LED light source with optional lens cover included and can be installed on a down rod or semi-flush mounted for lower ceilings.
- Hard Wired, 4 Speed Control Included
- Custom Bordeaux Polycarbonate Blades Included Clear Acrylic
- Tri-Mount (Flat, Semi-flush) or Angled Ceiling up to 23°
- Suitable for Indoor only
- Included (Optional) 1 x 17W 3000 CCT Dimmable LED Bulb Optional Lens Cover Included
- Heavy-Duty, 3-Speed Reversible Motor
- 6 inch Downrod Included
- JA8/Title24 Compliant
- Energy Guide 3707 CFM, High Speed 5182 CFM
| Base Model Number | BRD52xxx3 |
|---|---|
| Feature 8 | JA8/Title24 Compliant |
| Feature 7 | 6 inch Downrod Included |
| Feature 6 | Heavy-Duty, 3-Speed Reversible Motor |
| Feature 5 | Included (Optional) 1 x 17W 3000 CCT Dimmable LED Bulb Optional Lens Cover Included |
| Feature 4 | Suitable for Indoor only |
| Feature 3 | Tri-Mount (Flat, Semi-flush) or Angled Ceiling up to 23° |
| Feature 2 | Custom Bordeaux Polycarbonate Blades Included Clear Acrylic |
| Feature 1 | Hard Wired, 4 Speed Control Included |
| Feature 9 | Energy Guide 3707 CFM, High Speed 5182 CFM |
| 2nd DR Blade to Ceiling (in.) | 10.49 |
| Blade to Ceiling (in.) | 15.51 |
| Canopy Height (in.) | 4.21 |
| Canopy Width (in.) | 5.85 |
| A: | 18.60 |
| A: w/o Light Kit - | 10.49 |
| A: 2nd Downrod | 10.49 |
| A: 2nd DR w/o Light | 18.59 |
| B: | 15.51 |
| B: 2nd Downrod | 10.49 |
| C: | 8.66 |
| D: | 5.85 |
| E: | 11.12 |
| F: w/ Light Kit | 13.58 |
| F: w/o Light Kit | 11.12 |
| G: | 10.49 |
| H: | 5.85 |
| H: | 8.66 |
| I: | 11.12 |
| Downrod Length (in.) | 6 |
| Blade to Ceiling (in.) | 10.49 |
| Height (in.) | 13.58 |
| Housing Size | 8.66 |
| Housing Height | 11.12 |
| Height (in.) | 18.60 |
| 2nd DR Height (in.) | 10.49 |
| 2nd DR Height w/o Light Kit (in.) | 18.59 |
| Height w/o Light Kit (in.) | 10.49 |
| Blade Sweep Opt (in.) | 52 |
| Blades | 3 |
| Blade Pitch (deg) | 16 |
| Motor Size (MM) | 172x17 |
| Amps at High Speed | 0.40 |
| Watts (Hi Speed) | 46.04 |
| Energy Guide Watts | 30 |
| Energy Guide CFM | 3707 |
| Energy Guide CFM_Watts | 125 |
| Energy Guide Est. Yearly Energy Cost | 3 |
| High Speed (CFM) | 5182 |
| Low Speed (CFM) | 2035 |
| Carton Size (CU FT) | 2.01 |
| Blade Material | Polycarbonate |
| Blade Sweep (in.) | 52 |
| Optional Blank Light Kit Lens Cover | Optional (Included) |
| Bulb CCT | 3000 |
| Bulb Wattage | 17 |
| Bulb Base | Integrated LED |
| Bulbs | 1 |
| Bulb Size | Integrated LED |
| Bulb Type | LED |
| Collection | Bordeaux |
| Control Types Included | CM-7W-LED |
| CRI | 90 |
| Dimmable | Yes |
| Energy Star | No |
| Fan Dimensions Image | tri-mount-dim-dia.png |
| Leadwire Length (in.) | 80 |
| Light Kit Adaptable | No |
| Light Kit Options | Included Optional |
| Lumens | 766 |
| Motor Type | AC |
| Mounting Location | Indoor |
| Mounting Method | Tri-Mount (Flat, Angled, Semi Flush) |
| No. Downrods Included | 1 |
| No. Shipping Boxes | 1 |
| Product Type | Ceiling Fan (Blades Included) |
| Reversible Blades | No |
| Safety Rating | cULus |
| Shipping Weight (lbs.) | 21.78 |
| UPS Oversized | No |
| Voltage | 120V/60Hz |
| Warranty | Limited Lifetime Warranty |
| Glass or Shade Color | Frost White |
| A: | 18.60 |
|---|---|
| A: w/o Light Kit - | 10.49 |
| A: 2nd Downrod | 10.49 |
| A: 2nd DR w/o Light | 18.59 |
| B: | 15.51 |
| B: 2nd Downrod | 10.49 |
| C: | 8.66 |
| D: | 5.85 |
| E: | 11.12 |
| F: w/ Light Kit | 13.58 |
| F: w/o Light Kit | 11.12 |
| G: | 10.49 |
| H: | 5.85 |
| H: | 8.66 |
| I: | 11.12 |
| Downrod Length (in.) | 6 |
